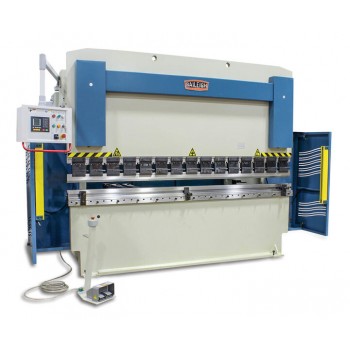

New Baileigh BP-22413CNC Hydraulic Press Brake 157 Inch 224 Ton

New Baileigh BP-22413CNC Hydraulic Press Brake 157 Inch 224 Ton

The Baileigh BP-22413CNC is a 224-ton hydraulic press brake engineered for accuracy, durability, and efficiency in heavy-duty forming applications. With a 13-foot (157") bending bed, this CNC-controlled machine delivers the power and precision needed for high-production fabrication, large panel bending, and structural metal forming. Built from fully welded, stress-relieved steel, the BP-22413CNC maintains exceptional rigidity and repeatability under full load. The 2-axis CNC control system (Estun E21) provides precise positioning for both the ram and backgauge, allowing operators to program and store multiple bend sequences for consistent results on every job.

Features
Capacity: 224 tons of bending force; 13' (157") bed length for large-scale projects
2-Axis CNC Control (Estun E21): Program, store, and recall bend sequences for fast, repeatable production
Hydraulic precision: Smooth, reliable bending powered by a robust industrial hydraulic system
Heavy-duty frame: Fully welded and stress-relieved steel construction ensures accuracy and long service life
Hardened tooling included: Standard gooseneck punch and multi-V bottom die for a range of forming options
Backgauge system: CNC-controlled for fast material positioning and improved efficiency
Safety features: Light curtains, guards, and emergency stops for operator protection
Applications: Ideal for large-scale fabrication, industrial production, and precision metal forming
Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support
The Baileigh BP-22413CNC combines massive forming capacity with CNC-controlled accuracy, making it the perfect solution for shops that need to produce high-quality, repeatable bends on large parts and heavy materials
